Designing for Performance

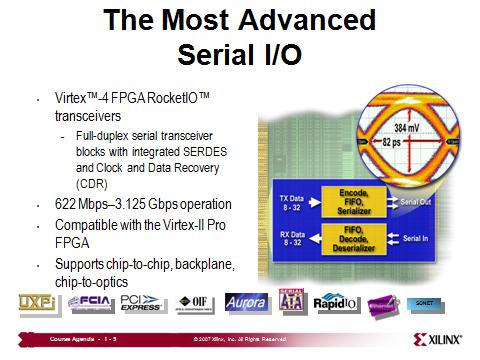

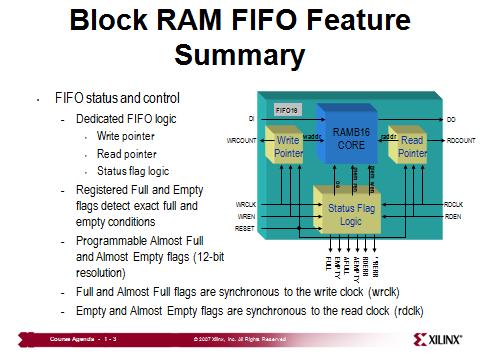

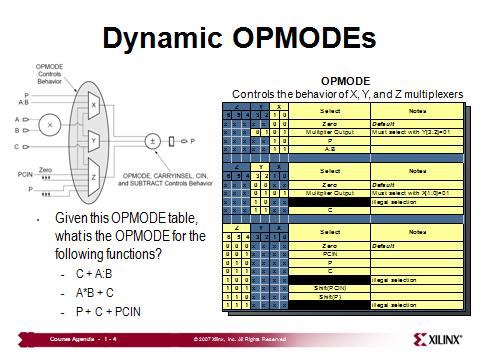

Roll over the picture, click to view some demo slides
Course Number532
Price NIS before VAT / Tcs2520 / 6
Duration (Days)2
LanguageEnglish/Hebrew
Level
JanFebMarAprMayJun
     15-16

JulAugSepOctNovDec
30-31  15-16
+972 3 9247780 ext. 207
Tell about this course to a friend


Available training formats



Attending the Designing for Performance class will help you create more efficient designs. This course can help you fit your design into a smaller FPGA or a lower speed grade for reducing system costs. In addition, by mastering the tools and the design methodologies presented in this course, you will be able to create your design faster, shorten your development time, and lower development costs.

Software Tools

  • ISE™
  • Synplicity® Synplify Pro™
  • Mentor Graphics® Precision RTL™

Skills Gained

After completing this training, you will be able to:

  • Describe a flow for obtaining timing closure
  • Describe architectural features of the Virtex™-4 FPGA
  • Describe the features of the Digital Clock Manager (DCM) and Phase-Matched Clock Divider (PMCD) and how they can be used to improve performance
  • Increase performance by duplicating registers and pipelining
  • Write HDL code by using a style that is optimal for targeting Xilinx device
  • Describe different synthesis options and how they can improve performance
  • Create and integrate cores into your design flow by using the CORE Generator™ software system
  • Run behavioral simulation on an FPGA design that contains cores
  • Pinpoint design bottlenecks by using the Timing Analyzer reports
  • Apply advanced timing constraints to meet your performance goals
  • Use advanced implementation options to increase design performance

  • Fundamentals of FPGA Design
  • Designing with Virtex-4 FPGA Resources
  • Lab 1: CORE Generator Software System
  • Designing Clock Resources
  • Lab 2: Designing Clock Resources
  • FPGA Design Techniques
  • Synthesis Techniques
  • Lab 3: Synthesis Techniques
  • Achieving Timing Closure
  • Lab 4: Review of Global Timing Constraints
  • Timing Groups and OFFSET Constraints
  • Path-Specific Timing Constraints
  • Lab 5: Achieving Timing Closure
  • Advanced Implementation Options
  • Lab 6: Designing for Performance
  • Power Estimation (Optional)
  • Lab 7:FPGA Editor Demo (Optional)
  • Pro Analyzer (Optional)
  • Lab 8:ChipScope Pro Analyzer (Optional)
  • Course Summary
  Lab Descriptions
  • Lab 1: CORE Generator Software System – Create a core, instantiate the core into VHDL or Verilog source code, and run behavioral simulation.
  • Lab 2: Designing Clock Resources – Use the Clocking Wizard to configure DCMs and global clock buffer resources.
  • Lab 3: Synthesis Techniques – Experiment with different synthesis options and view the results. Versions of this lab are available for Synplicity Synplify Pro, Precision RTL, and Xilinx XST software.
  • Lab 4: Review of Global Timing Constraints – Use the Constraints Editor to enter global timing constraints.
  • Lab 5: Achieving Timing Closure – Review timing reports and enter path-specific timing constraints to meet performance goals.
  • Lab 6: Designing for Performance – Improve performance and maximize results solely with implementation options.
  • FPGA designers with intermediate knowledge of HDL and some experience with the Xilinx ISE software tools.
  • Fundamentals of FPGA Design course or equivalent knowledge of FPGA architecture features; the Xilinx implementation software flow and implementation options; reading timing reports; basic FPGA design techniques; global timing constraints and the Constraints Editor
  • Intermediate HDL knowledge (VHDL or Verilog)
  • Solid digital design background


You consider we have missed something in the syllabus? Call us 972-3-9247780 ext. #207 or E-mail us    and we shall dispel your doubts.
