Designing with the Virtex-4 Family

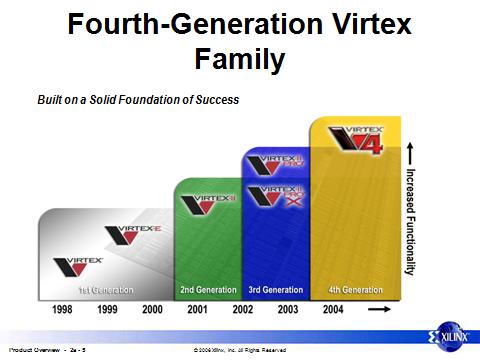

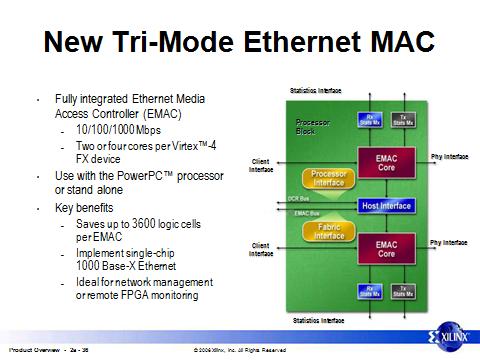

Roll over the picture, click to view some demo slides
Course Number534
Price NIS before VAT / Tcs2520 / 6
Duration (Days)2
LanguageEnglish/Hebrew
Level
JanFebMarAprMayJun
Call    Call

JulAugSepOctNovDec
Call
+972 3 9247780 ext. 207
Tell about this course to a friend


Available training formats



Interested in learning how to utilize Virtex-4 FPGA architectural resources effectively? This course focuses on understanding and utilizing several of the new and enhanced resources found in our newest device. Topics covered include an overview of the Virtex-4 FPGA; the Digital Clock Manager (DCM) and Phase-Matched Clock Divider (PMCD); global and regional clocking techniques; memory and FIFO; and source-synchronous resources. A combination of modules and labs allow for practical hands-on application of the principles taught in this course.

Software Tools

  • ISE™
  • Xilinx XST

Skills Gained

After completing this training, you will be able to:

  • Utilize Virtex-4 FPGA global clocking resources
  • Utilize Virtex-4 FPGA regional clocking resources
  • Design with the Virtex-4 FPGA DCM
  • Design with the Virtex-4 FPGA PMCD
  • Discuss Virtex-4 FPGA block RAM and FIFO16 blocks
  • Utilize the DSP48 block
  • Explain source-synchronous resources

Lab Descriptions

  • Lab 1: DCM clocking; Designing a clock management scheme with DCMs and PMCDs.
  • Lab 2: Clocking Resources; utilizing global and regional clock networks.
  • Lab 3: Utilizing Source-Synchronous I/O Resources; Creating a source-synchronous design interface for a network application.
  • Lab 4: Utilizing Block RAM and FIFO16; Utilizing new block RAM features and FIFO16-dedicated resources.
  • Lab 5: Utilizing XtremeDSP Technology Resources; Utilizing the DSP48 block.

Day 1
  • Introduction
  • Product Overview
  • DCM Clock Management
  • PMCD Clock Management
  • Lab 1: DCM Clocking
  • Clock Networks
  • Lab 2: Clocking Resources
  Day 2
  • Day 2: Overview

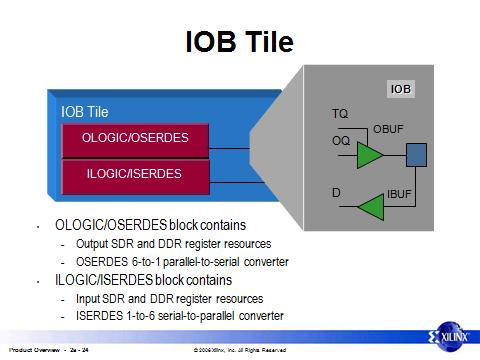

  • I/O and Source-Synchronous Resources
  • Lab 3: Utilizing Source-Synchronous I/O Resources
  • Block RAM Memory Resources
  • FIFO16 Memory Resources
  • Lab 4: Utilizing Block RAM and FIFO16
  • XtremeDSP™ Technology Slice
  • Lab 5: Utilizing XtremeDSP Technology Resources
  • Configuration
  • Day 2: Review
  • Experienced Xilinx users or those who have taken the Fundamentals of FPGA Design and Designing for
  • Performance courses. Students should have a solid understanding of Virtex-II, Virtex-II Pro, and Virtex-II ProX FPGA architectures, the ISE software, timing constraints, and timing closure techniques.
  • Fundamentals of FPGA Design course
  • Designing for Performance course
  • Understanding of the Virtex-II, Virtex-II Pro, Virtex-II Pro X FPGA architecture
  • Intermediate knowledge of VHDL or Verilog


You consider we have missed something in the syllabus? Call us 972-3-9247780 ext. #207 or E-mail us    and we shall dispel your doubts.
