DSP Implementation Techniques for Xilinx FPGAs

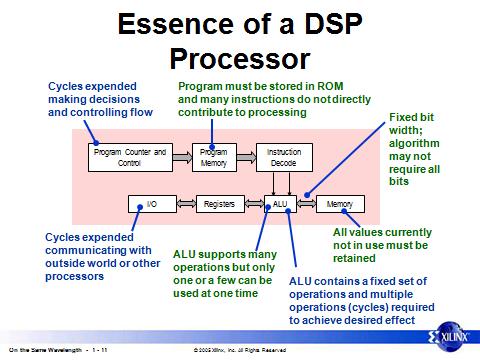

Roll over the picture, click to view some demo slides

Course Number	543
Price NIS before VAT / Tcs	3780 / 9
Duration (Days)	3
Language	English/Hebrew
Level

Jan	Feb	Mar	Apr	May	Jun
	Call			Call

Jul	Aug	Sep	Oct	Nov	Dec
		02-04

		+972 3 9247780 ext. 207
		Tell about this course to a friend

Available training formats

This course shows you how to take advantage of the features available in the Xilinx FPGA architecture, including the Virtex™-4 FPGA, and describes how DSP algorithms can be implemented efficiently. The techniques also demonstrate which decisions at the system level have the greatest impact on the implementation process and product costs.

Software Tools

Skills Gained

After completing this training, you will be able to:

Describe how DSP algorithms can be implemented efficiently by using Xilinx FPGA technology
Identify the capabilities and features of the various Xilinx FPGA families to implement efficient DSP algorithms
Establish methods for the accurate estimation of silicon area consumption and cost
Evaluate which algorithms are best suited for FPGA implementation and identify which algorithms are less desirable
Assess how system-level decisions impact hardware implementation and how hardware implementation can enhance results at the system level

Day 1

On the Same Wavelength
Basic terminology and acronyms used in DSP design
Sample rates and bit widths used in DSP applications
DSP building blocks and processing requirements
Some Bits About Numbers
Numbering formats, range, and precision
Mathematical operations using a variety of formats
Tuning the Receiver

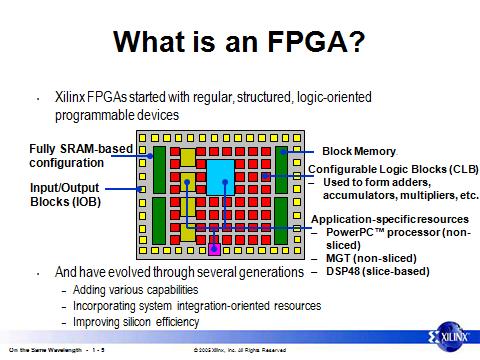

Structure and Resources of Xilinx Devices
Estimating DSP building block sizes

Day 2

Tuning the Receiver (continued)
Implementing the multiplication function
Bit-width impact on system-level decisions
Memories are Made of This
Block versus distributed memory

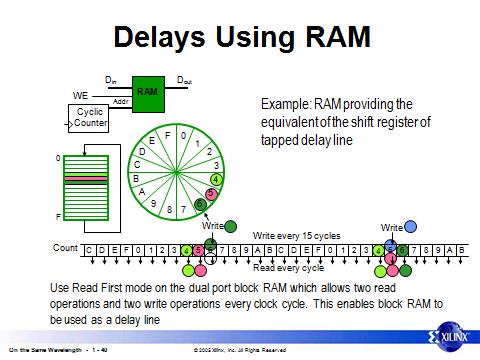

SRL16E and the Delay Function
Memory aspect ratios and their manipulation
Selective Filters
FIR filter specifications and implementation
Selecting a technique for a given specification
Effects of halfband and interpolated filters

Day 3

One Filter Does Not Make a System
Options to be considered with multiple channels
Interpolation and decimation
Rate changing and its effect on FIR filter choice
Filtering algorithms that exploit device architecture
Importance of connectivity versus isolated functions
Do Not Block the Datapath
Numeric controlled oscillators and mixers
Strategies for FFT implementation
Achieving bandwidth requirements of the FFT
Using the FPGA as an efficient co-processor

Course Exercises

MAC Rates and Memory Requirements
Constructing a 128-Tap FIR Filter
Fractional Number Formats
Twos Complement Arithmetic
Summation by Addition Tree
Summation by Addition Chain
Full Adder: How Many Slices?
Summation Structure Sizes
Serial Summation Structure
8-Bit by 12-Bit Multiplier
KCM Multipliers
Distributed RAM for FIFO
Size Estimates for Delay Structures
Using the SRL16E as a FIFO
Creating Larger RAM Structures
Selecting a MAC FIR Technique
Parallel FIR Filter Size
Symmetry, Interpolation, and Phases
Decimation Filter
"fs/4" Mixing and Decimation
Designing a Numeric Controlled Oscillator (NCO)
FFT: Benchmarks and Transform Time
Collection Time = Processing Time
128-point FFT in 1.28 µS

Engineers and designers who have an interest in developing products that use digital signal processing

A fundamental understanding of digital signal processing theory, including an understanding of the following principles:
- Sample rates
- Finite Impulse Response (FIR) and Infinite Impulse Response (IIR) filters
- Oscillators and mixers
- Fast Fourier Transform (FFT) algorithm

You consider we have missed something in the syllabus? Call us 972-3-9247780 ext. #207 or E-mail us

and we shall dispel your doubts.
