Embedded Systems Development

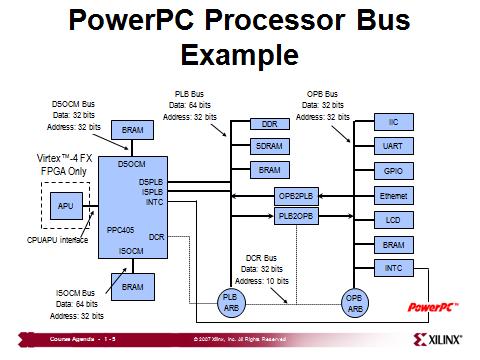

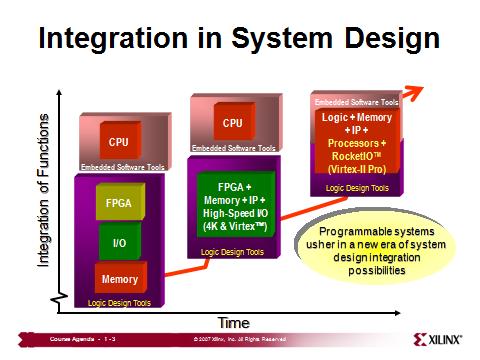

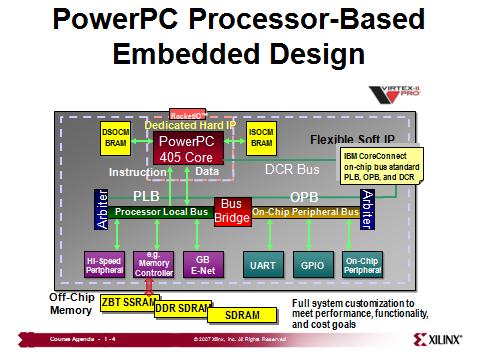

Roll over the picture, click to view some demo slides
Course Number561
Price NIS before VAT / Tcs3780 / 9
Duration (Days)3
LanguageEnglish/Hebrew
Level
JanFebMarAprMayJun
30/12-1/1  18-20  18-20

JulAugSepOctNovDec
20-22    18-20
+972 3 9247780 ext. 207
Tell about this course to a friend


Available training formats



Xilinx FPGAs provide a new level of system design capabilities through soft MicroBlaze processors, hard PowerPC processors, and silicon-efficient architectural resources. This course brings experienced FPGA designers up to speed on developing embedded systems using the Embedded Development Kit (EDK). The features and capabilities of the Xilinx MicroBlaze soft processor and the PowerPC 440 processor are also included in the lectures and labs. The hands-on labs provide experience with the development, debugging, and simulation of an embedded system.

Software Tools

  • Xilinx ISE
  • Mentor Graphics ModelSim
  • EDK

Skills Gained

After completing this training, you will be able to:

  • Describe the various tools that encompass the Xilinx Embedded Development Kit (EDK)
  • Rapidly architect an embedded system containing a MicroBlaze or IBM PowerPC processor and Xilinx-supplied CoreConnect bus architecture IP by using the Base System Builder (BSB)
  • Utilize the Eclipse-based Software Development Kit (SDK) to develop software applications and debug software
  • Create and integrate your own IP into the EDK environment

  • EDK Overview
  • Base System Builder
  • Lab 1: Hardware Construction with the Base System Builder
  • Software Development Using SDK
  • Lab 2: Software, Implementation, and Download System Buses
  • Hardware Design
  • Hardware Design Using EDK
  • Lab 3: Adding IP to a Hardware Design
  • Adding Your Own IP to the Embedded System
  • Lab 4: Adding Custom IP to an Embedded System
  •  Software Debugging
  • Linker Script Generator
  • Lab 5: Software Debugging
  • System Simulation
  • Lab 6: Performing System Simulation


Lab Descriptions

  • Lab 1: Hardware Construction with the Base System Builder – Create an XPS project by using the Base System Builder to develop a basic hardware system and generate a series of netlists for the embedded design.
  •  Lab 2: Software, Implementation, and Download – Complete the processes begun in Lab 1 by building the software libraries and applications, generating a bitstream file, merging the application into the bitstream, and downloading to the ML507 board.
  • Lab 3: Adding Custom IP to a Hardware Design – Learn to add IP from the many choices in the IP library. Use the GUI to add a general-purpose I/O module and access internal block RAM directly from the MHS file..
  • Lab 4: Adding Custom IP to an Embedded System – Add custom IP to your design by using the Create and Import Peripheral wizard.
  • Lab 5: Software Debugging – Run the Software Development Kit (SDK) to produce a debug perspective, set breakpoints, and debug the application.
  • Lab 6: Performing System Simulation – Use ISIM to perform behavioral simulation of the completed design.
  • Engineers who are interested in developing embedded systems with the Xilinx MicroBlaze soft processor or IBM PowerPC 440 core using the Embedded Development Kit and a Xilinx FPGA.
  • FPGA design experience
  • Completion of the Fundamentals of FPGA Design course or equivalent knowledge of Xilinx ISE™ software implementation tools
  • Basic understanding of C programming
  • Some HDL modeling experience


You consider we have missed something in the syllabus? Call us 972-3-9247780 ext. #207 or E-mail us    and we shall dispel your doubts.
