Designing with XILINX Ethernet MAC Controller

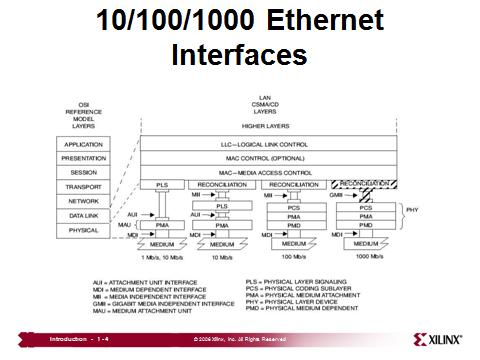

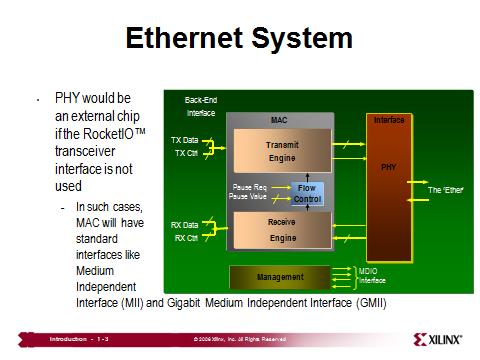

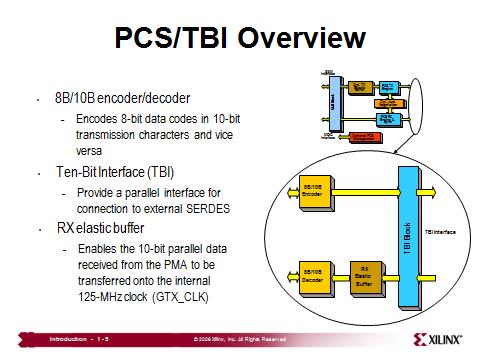

Roll over the picture, click to view some demo slides

Course Number	644
Price NIS before VAT / Tcs	2520 / 6
Duration (Days)	2
Language	English/Hebrew
Level

Jan	Feb	Mar	Apr	May	Jun

Jul	Aug	Sep	Oct	Nov	Dec
					03-04

		+972 3 9247780 ext. 207
		Tell about this course to a friend

Available training formats

Become acquainted with the various solutions that Xilinx offers for Ethernet connectivity. Learn the basics of the Ethernet standard, protocol, and OSI model while applying Xilinx solutions via hands-on laboratory exercises. Perform simulation to understand fundamental principles and obtain the knowledge to assess hardware design considerations and software development requirements.

Software Tools

Xilinx ISE 8.2i SP1 with IP update 1
Mentor Graphics ModelSim PE 6.0
EDK 8.2

Skills Gained

After completing this comprehensive training, you will have the necessary skills to:

Identify Ethernet basics
Utilize various Ethernet cores, used either in standalone mode or as a peripheral in a processor-based design
Determine the appropriate core to use
Develop software to drive the core and achieve desired functionality
Integrate hard and soft IP into the Embedded Development Kit (EDK)

Day 1

Ethernet Basics
Network Protocols, Ethernet Interfaces, and Hardware
Lab 1: Analyzing Ethernet Frames
Physical Layer
LocalLink Interface
Lab 2: VLAN and Jumbo Frames
Xilinx EMAC Solutions

Day 2

Lab 3: Implementation
EMAC and EMAC Lite
Lab 4: EMAC Peripheral in Loopback Mode
GEMAC
TEMAC
Lab 5: TEMAC in Loopback Mode
10GE MAC
Lab 6: Analyzing 10GE MAC Frames

Lab Descriptions

Lab 1 - Analyzing Ethernet Frames: Understand components of Ethernet frames and how the packets flow. Analyze various packets and observe how the core reacts to MAC address changes.
Lab 2 - VLAN and Jumbo Frames: Modify the configuration register to enable and observe the effects of VLAN and jumbo frames. Understand statistics vectors.
Lab 3 - Implementation: Use CORE Generator™ software to generate a gigabit Ethernet core and then proceed with the implementation flow.
Lab 4 - EMAC Peripheral in Loopback Mode: Use the EDK to instantiate and connect the OPB EMAC peripheral to the OPB bus. Develop software to place the core in loopback mode.
Lab 5 - TEMAC in Loopback Mode: Use the EDK to instantiate a hard TEMAC and soft PLB TEMAC wrapper. Configure cores in scatter gather DMA mode. Use three programs to test the hardware in polled, simple DMA, and scatter gather DMA modes after placing the hardware in loopback mode.
Lab 6 - Analyzing 10GE MAC Frames: Use the ModelSim simulator to perform functional simulation. Analyze various frames from XGMII and the client interface point of view.

Engineers who would like to come up to speed on utilizing Xilinx Ethernet connectivity solutions (soft cores and hard IP)

Fundamentals of FPGA Design course
C programming knowledge recommended
Experience with Xilinx ISE™ and Embedded Development Kit (EDK) software tools

You consider we have missed something in the syllabus? Call us 972-3-9247780 ext. #207 or E-mail us

and we shall dispel your doubts.
